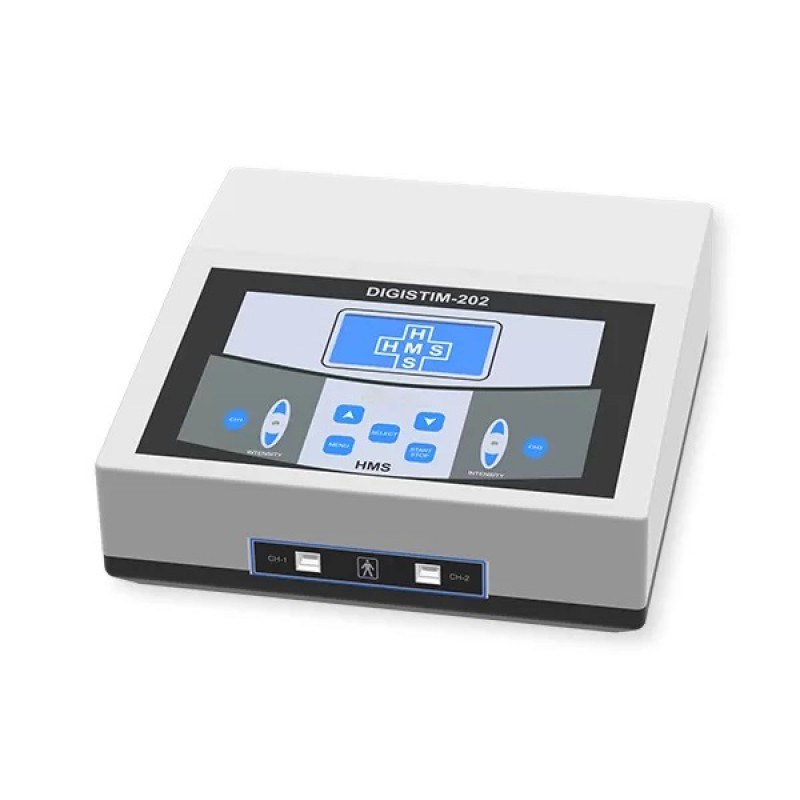

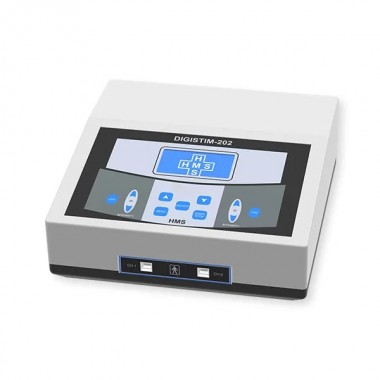

HMS Digistim 202 – Computerised Dual Stimulator Combo Therapy

DIGISTIM 202 is a computerized dual-channel stimulator with MST, Dia-dynamic, TENS, and FES outputs. DIGISTIM 202 presents a Special future in which both the channels can be set with two independent programs at the same time and treat two patients simultaneously. Soft-touch membrane keys are provided to select the modes and parameters. The Digital Display Indicates the output current in mA and In IG mode Rectangular / Triangular pulses can be set.

• Treatment modes – Stimulator, TENS, Diadynamic and FES
• Output current – 1 – 100 mA
• Timer – 0 – 99 mins

STIMULATOR

• IG Therapeutic – 30 – 300 mSec (1 mSec step)
• IG Diagnostic – .01, .03, .3, .1, 1, 3, 10, 30, 100,
  300, 1000 mSec
• Pulse type – Square, Triangular

SURGE FARADIC

• Freq./ P.width – 50 Hz / 0.7 mSec
• Surge ON time – 1 – 10 sec (1 sec step)
• Surge OFF time – 1 – 10 sec (1 sec step)

TENS

• Frequency – 2 – 250 Hz in (1 Hz step)
• P.Width – 20 – 250 sec (1m sec step)

FES

• Frequency – 20 – 120 Hz (1 Hz step )
• ON time – 1 – 10 sec
• OFF time – 1 – 10 sec
• Ramp up/down – 1 – 10 sec

•

•

• • Micro controller-based circuitry
  • 30 User memory
  • LCD display for therapy type and treatment time
  • User friendly with soft touch key functions
  • Independent two channel
  • Light weight plastic moulded cabinet
  • At a time two different treatment for two patients
